AB Glue Dispenser

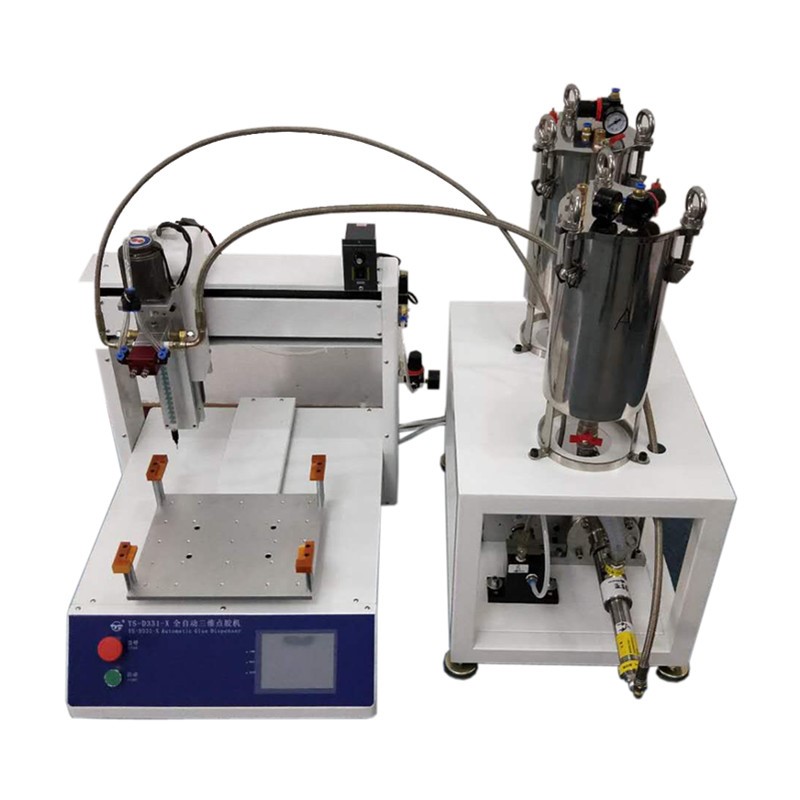

YS-D331-X Two components Glue Doming Machine

This robot fit for all viscosities of glue.Can dot, draw lines,
 squares, circles and all kinds of irregular graphics on the products.

Share Button

Product Description

A Glue and B Glue mixed automatically according to specified proportion, dispenser then complete the dispensing process. Glue exudation volume and speed can both be controlled.
Voltage: 220V/50Hz
Power: 300W
Size: L671*W551*H612mm
Weight: 90-150KG
Air source: 4-6KG
Working Area: 300*300*60 Customization available
Operation Interface: 5.7 inch touch screen, English language
Dispensing Graphs:  dot, line, circle, and arc.
One-time drop or continuously dispensing.
Import Mode: teaching or file import, dxf, PLT form, etc.
Glue Exudation Control: A, B glue mix automatically
Max Speed: 500mm/sec
Repeatability: +/- 0.0.5mm
Control System: professional 3-axis motor control system

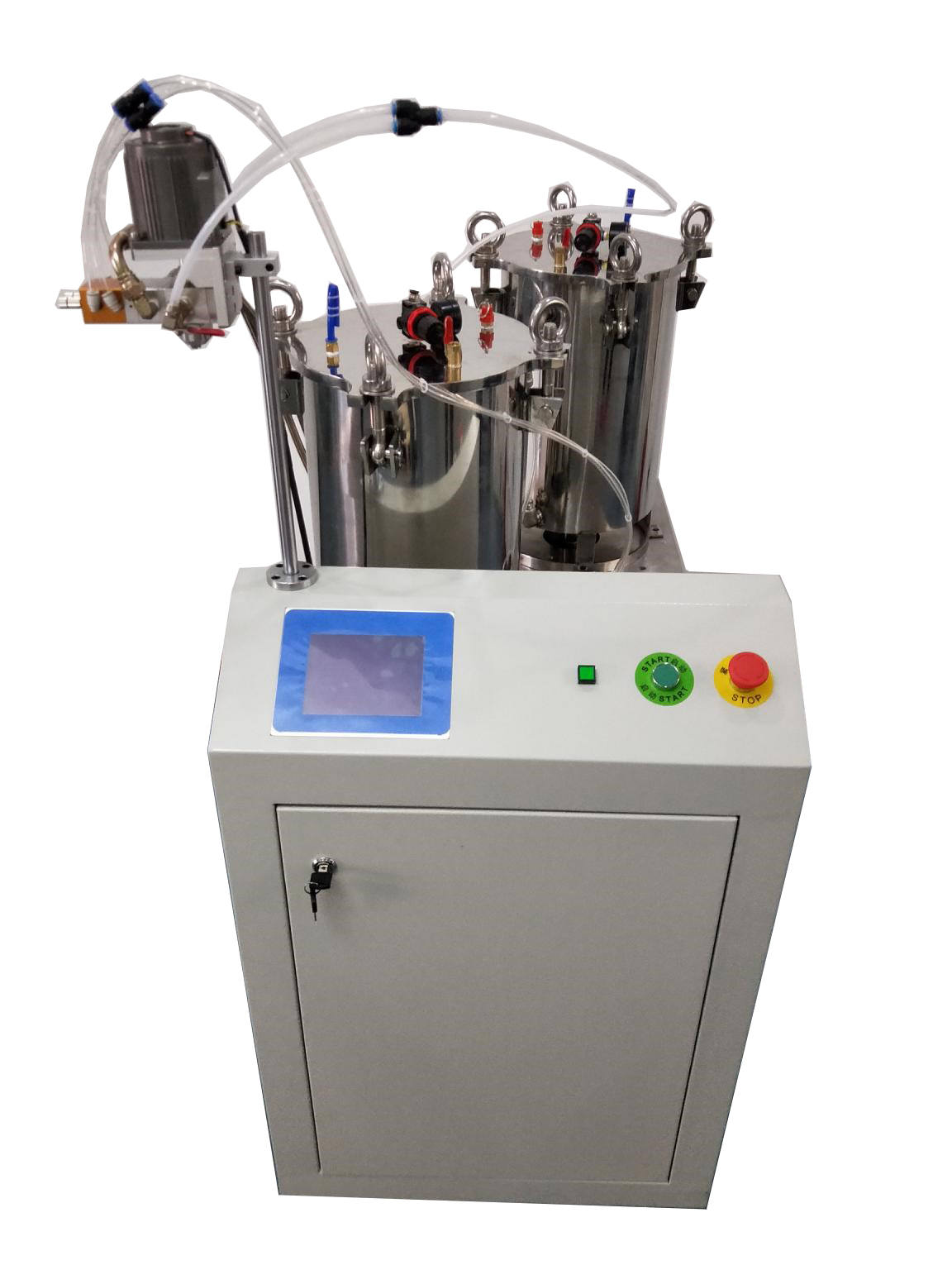

AB glue mixing device
